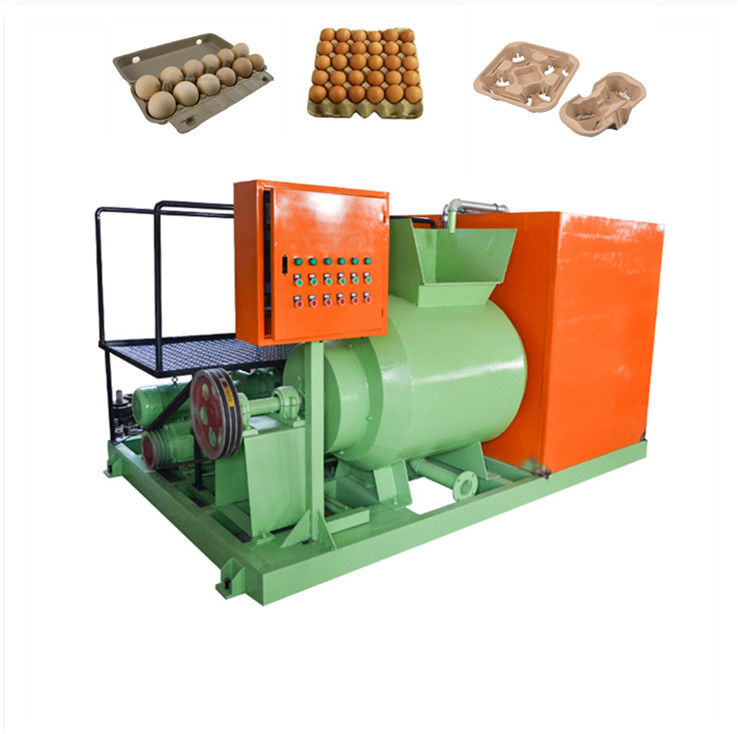

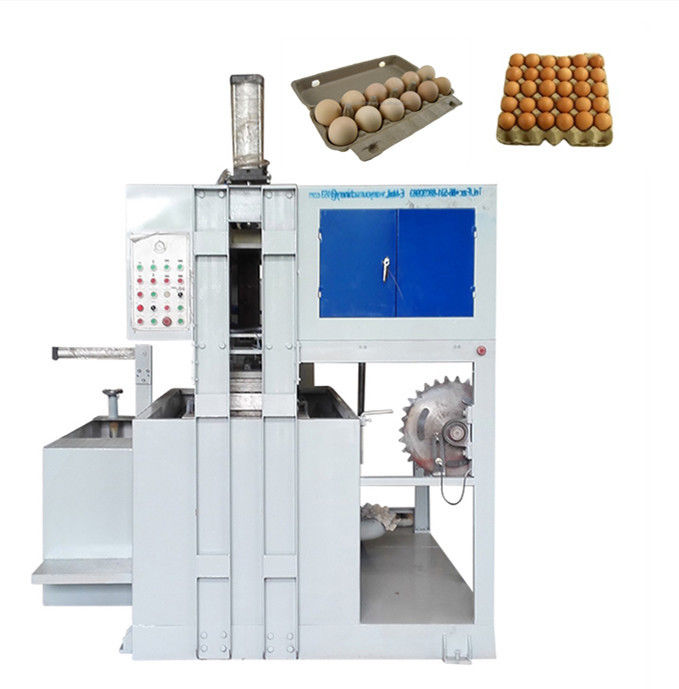

China Recyclable fully tableware Pulp Molding Machine /paper notebook egg tray making machine Germany Valves uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.
Technical data of egg tray machine:
| Item | Consumption/requirement | Remark |
| Electricity Power | 200kw | The burning source for the dryer boiler is selectable. Clients only need to choose one suitable for local site. |
| Waste paper | 450kg/h | |
| Water | 1.35t/h | |
| Natural gas/Diesel oils | 180m3/h/140kg/h around | |
| Firewood | 500kg/h around | |
| Workshop | 750m2(10mWidth*75mlength) | |
| Machine size | 65m*10m | |
| Workers Requirement | 10-12 persons |
1. pulping system:including the hydrapulper,pump,disk mill,water tank,pulp tank,mixer,etc..to make the waste paper into pulp.
2. forming system: including the molding machine,molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. drying system: including the oven,chains,trays,heating pipes,fans,boiler,etc..to dry the wet trays so they can be used directly.
The raw material is any wastepaper(without plastic) and water.

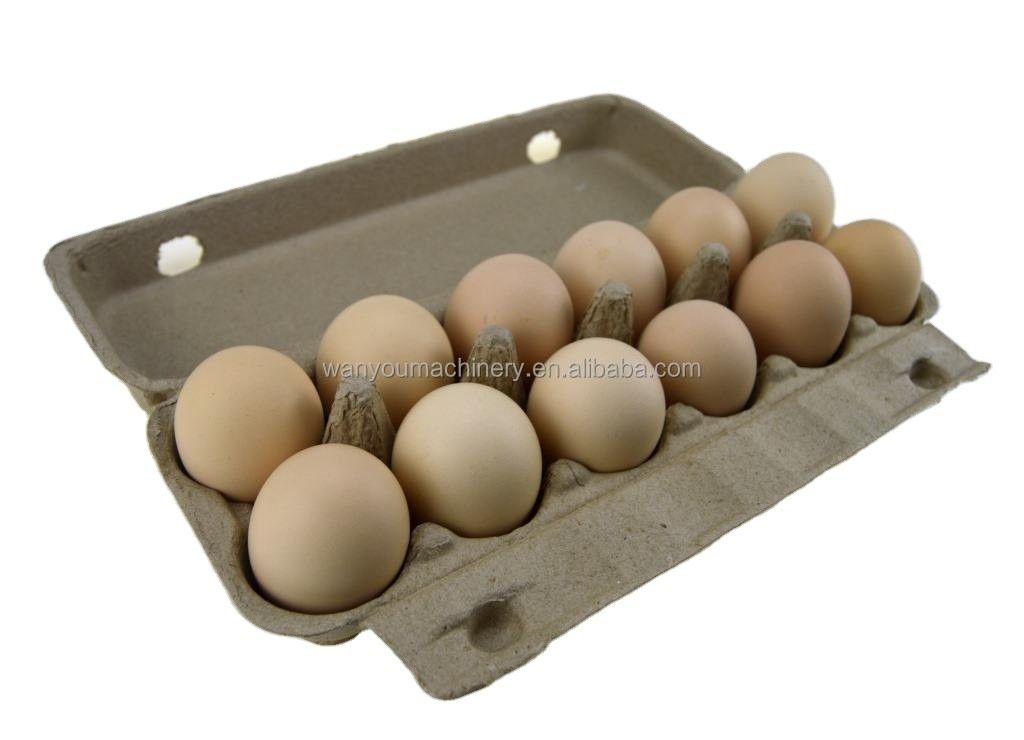

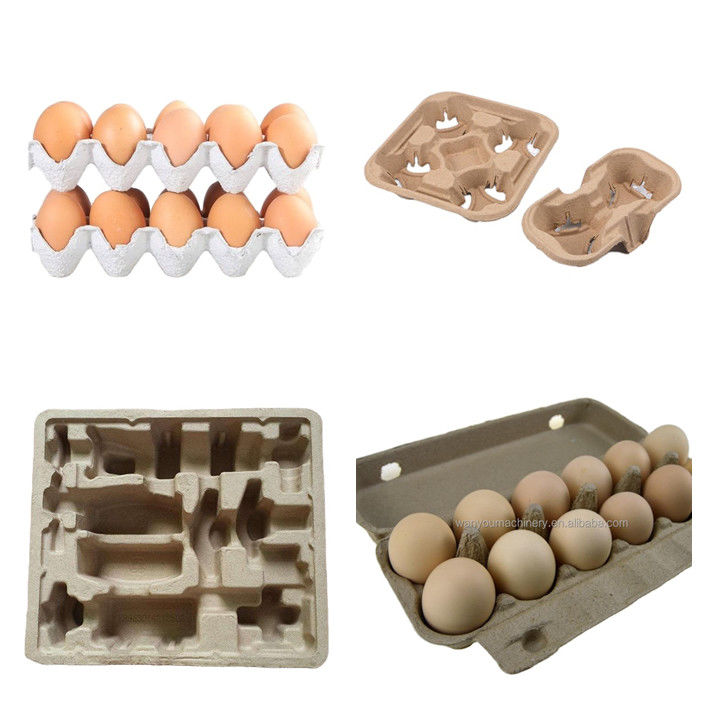

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)This production line is suitable for the following products:
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn’t change frequently) pulp molding products with large quantity.
